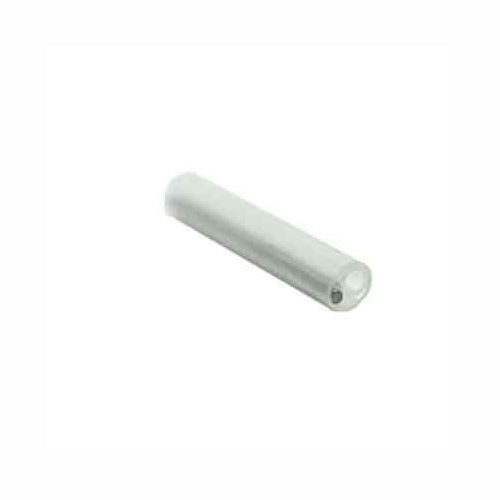

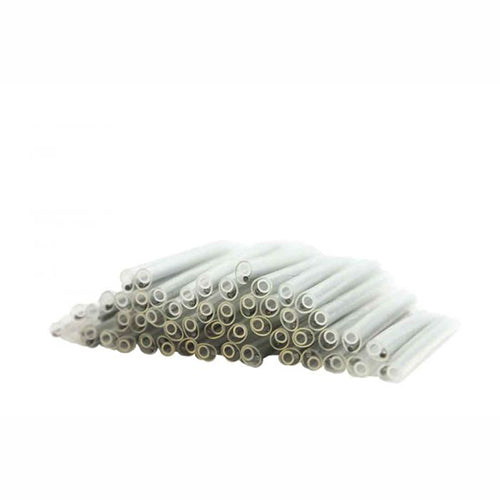

Mini 25mm Fusion Splice Sleeves, 50 Pack

The most popular method of protecting a fusion splice is the utilization of two heat sensitive tubes supported by a stainless steel rod. This sleeve contains a custom inner tube made of polyolifin, which melts around the fiber to provide both moisture and cushion protection. The Teflon-treated inner tube allows easy fiber entry. The sleeve shrinks to a size that allows insertion into most fusion splice trays. This is a proven shrink tube design used in thousands of telco and communication applications.

• Length: 25mm
• Steel Rod Diameter: 0.63mm
• Outer Tube Diameter: 2.3mm
• Inner Tube Diameter(Before Shrinkage): 1.0mm Inside Diameter
• Final Shrink Diameter: 2.0mm
• Warranty: 1 year manufacturer's warranty
• Length: 25 millimeters
• Weight: 0.02 lbs
