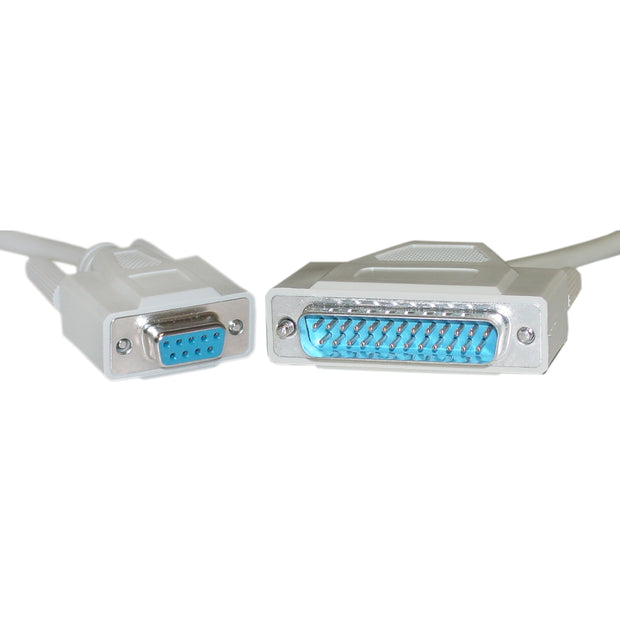

Serial Cable, DB9 Female to DB25 Male, 9 Conductor

Regular price $15.75

This 25 foot high quality serial / modem cable features molded connectors and gold plated contacts for superior corrosion resistance ensuring a solid connection for the life of the cable. Our cable is ideal for connecting 25 pin serial devices to laptops, computers and expansion / interface cards that have a 9 pin serial port. This female to male 9 conductor serial cable is solidly constructed, UL rated and RoHS Compliant.

Pinouts:
  • 1-8
  • 2-3
  • 3-2
  • 4-20
  • 5-7
  • 6-6
  • 7-4
  • 8-5
  • 9-22
  • G-G
Specification
  • Warranty: Lifetime
  • Color: Beige
  • Converts: Converts back and forth between DB9 Female Plug and DB25 Male Plug
  • End 1: DB9 Female Plug
  • End 2: DB25 Male Plug
  • Length: 25ft, 15ft, 10ft, 6ft, 3ft, 1ft
  • Wire Gauge: 28 AWG
