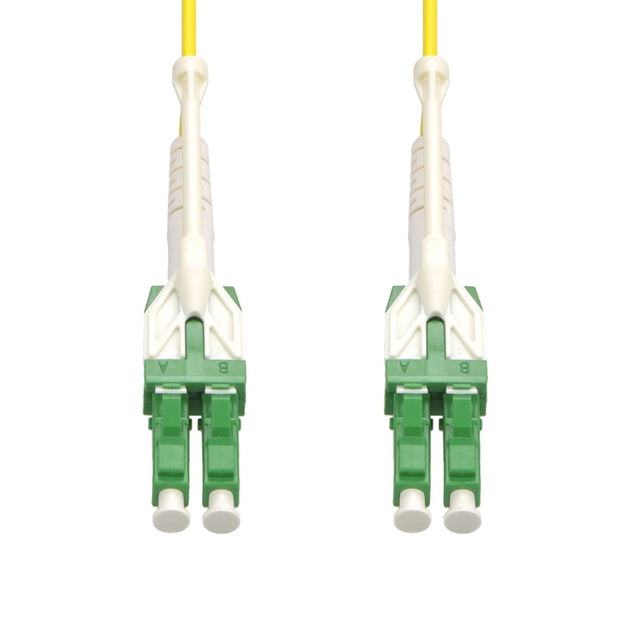

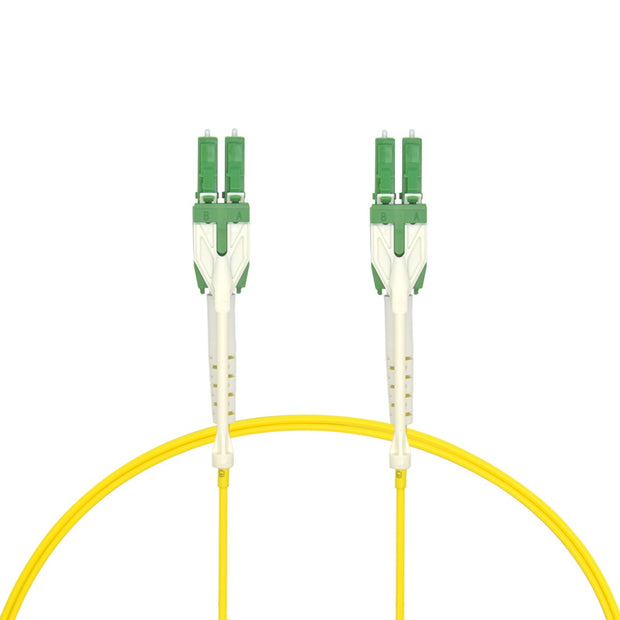

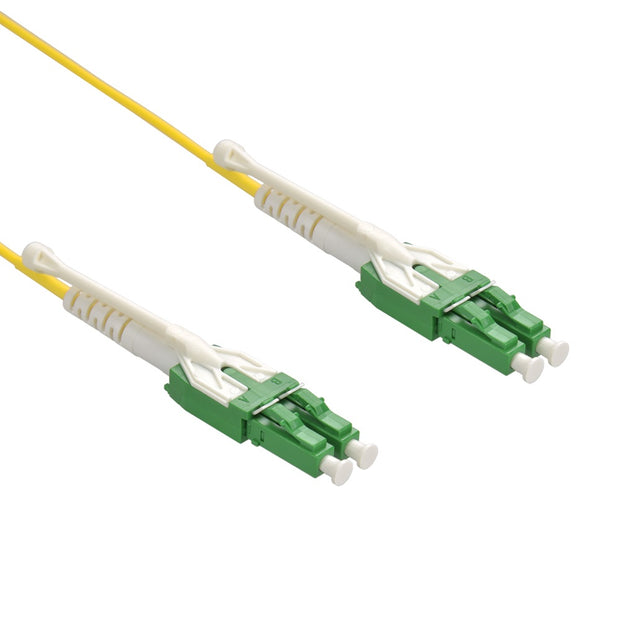

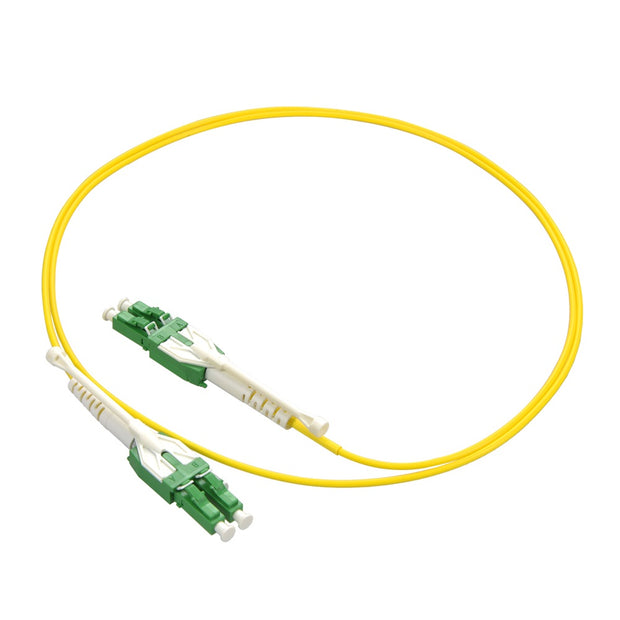

1m Uniboot LC/APC LC/APC Singlemode Duplex OFNR Fiber Optic Patch Cable
1m Uniboot LC/APC LC/APC Singlemode Duplex OFNR Fiber Optic Patch Cable
1m Uniboot LC/APC LC/APC Singlemode Duplex OFNR Fiber Optic Patch Cable
1m Uniboot LC/APC LC/APC Singlemode Duplex OFNR Fiber Optic Patch Cable
1m Uniboot LC/APC LC/APC Singlemode Duplex OFNR Fiber Optic Patch Cable

1m Uniboot LC/APC LC/APC Singlemode Duplex OFNR Fiber Optic Patch Cable

Regular price $15.75

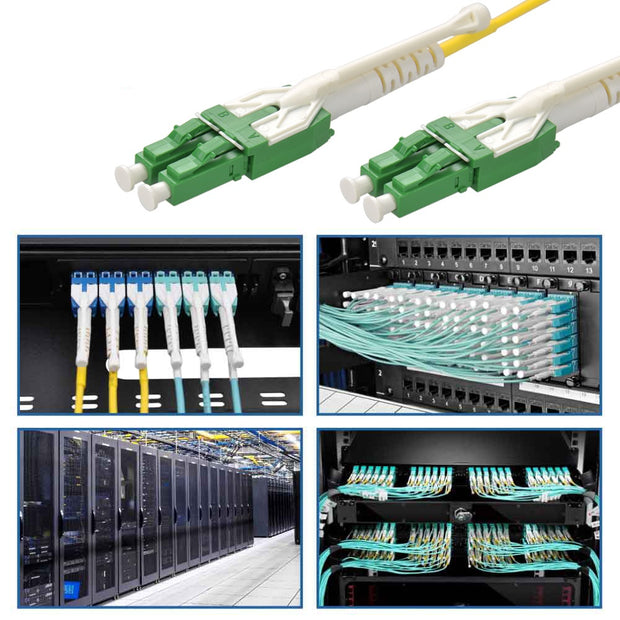

The LC-LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Pull-Push connector facilitates smooth and easy removal on high density patch panel.

Specifications:
  • Connector Type: LC-LC Duplex Singlemode
  • Polishing: APC
  • Return Loss: 55 dB
  • Insertion Loss: 0.30 dB
  • Ferrule Material: Ceramic (zirconia)
  • Ferrule Diameter: 1.25 mm / 2.5 mm
  • Body type: Duplex
  • Nominal Diameter Core: 9/125 µm
  • Jacket Material: OFNR
  • Operation Temperature Range: -20°C +70°C
