2-Post Relay Rack, 19 inch, 45U, Dimensions: 84.12 H x 20.81 W x 15.04 D inches
2-Post Relay Rack, 19 inch, 45U, Dimensions: 84.12 H x 20.81 W x 15.04 D inches
2-Post Relay Rack, 19 inch, 45U, Dimensions: 84.12 H x 20.81 W x 15.04 D inches
2-Post Relay Rack, 19 inch, 45U, Dimensions: 84.12 H x 20.81 W x 15.04 D inches
2-Post Relay Rack, 19 inch, 45U, Dimensions: 84.12 H x 20.81 W x 15.04 D inches
2-Post Relay Rack, 19 inch, 45U, Dimensions: 84.12 H x 20.81 W x 15.04 D inches
2-Post Relay Rack, 19 inch, 45U, Dimensions: 84.12 H x 20.81 W x 15.04 D inches

2-Post Relay Rack, 19 inch, 45U, Dimensions: 84.12 H x 20.81 W x 15.04 D inches

Regular price $702.60

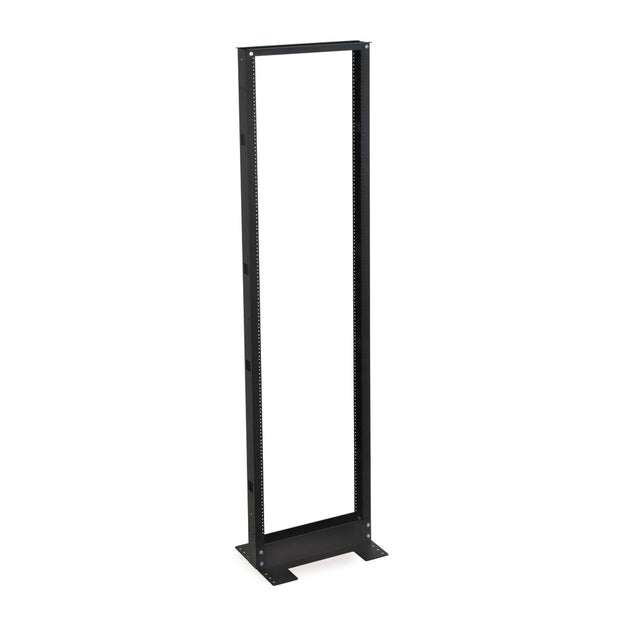

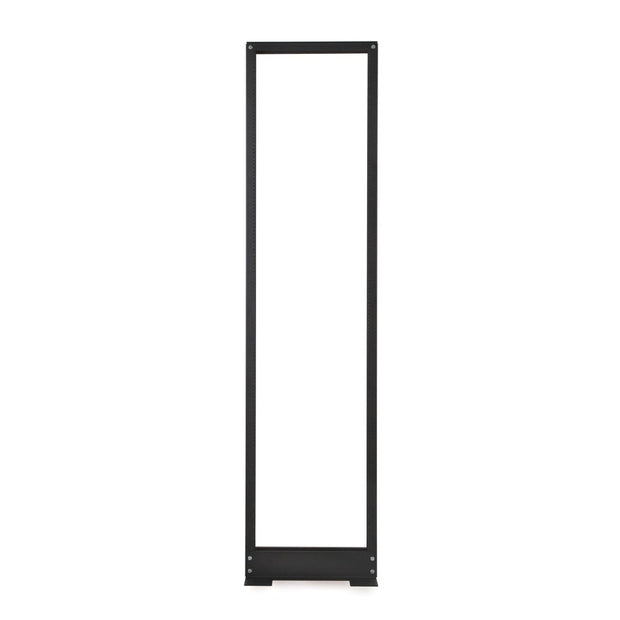

Constructed of Cold Rolled Steel with a black powder coated finish, the 45U 2-post relay rack holds up to 800 pounds of equipment including switches, patch panels, UPS's, rack shelves, trays, and more. To maintain the 800-pound weight capacity, the rack must be bolted or secured to the floor. We recommend installing the heaviest equipment at the lowest points on the rack. When multiple racks are needed, simply gang them together. The cable pass through slots included on the frame allow cabling to pass through between racks.

Details:
  • 84.12 H x 20.81 W x 15.04 D inches
  • 10-32 Tapped Rails
  • Gangable
  • Ships knocked down
  • 800 Pound Weight Capacity
  • 19 inch EIA compliant
  • Made in the USA
  • Contents

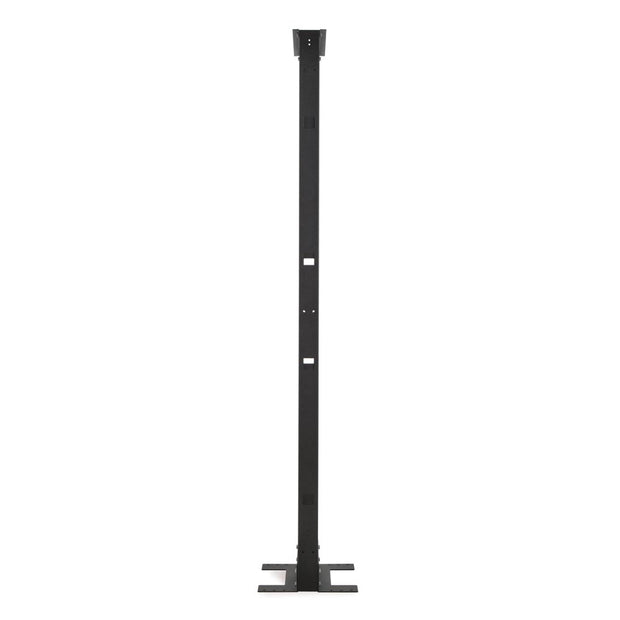

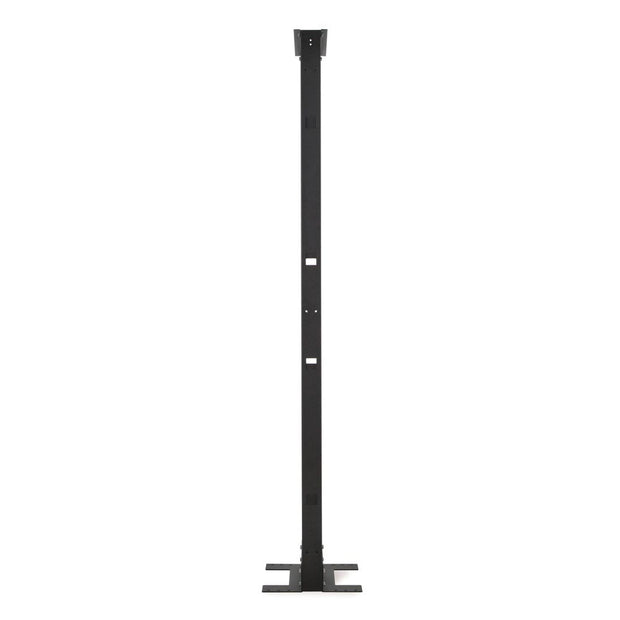

    • 45U Rails X 2

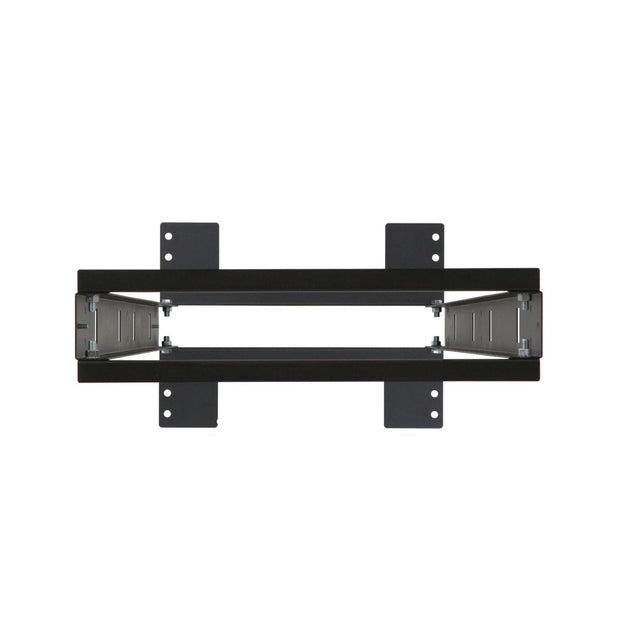

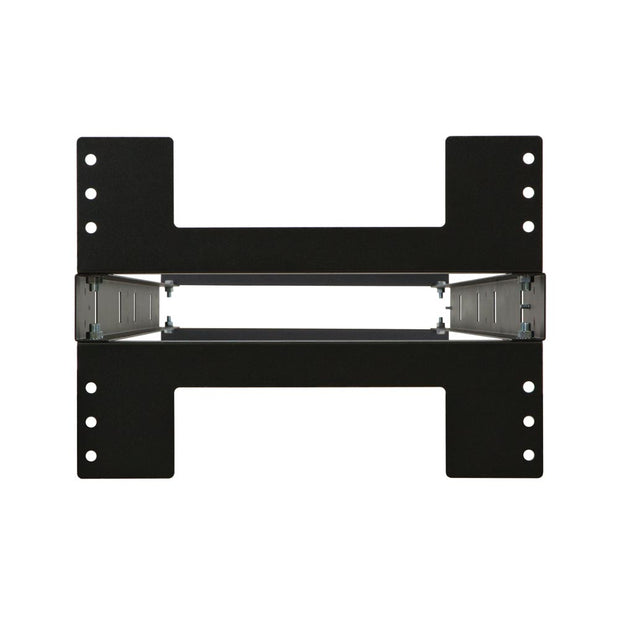

    • L Bases X 2
    • Upper Support Bracket X 2
    • 1/4-20 Grounding Studs X 4
    • 10-32 Rack Screws X 25
    • Assembly Hardware Pack X 1
Specification
  • Warranty: 5 years
  • Color: Black
  • Weight: 42.00 lbs
