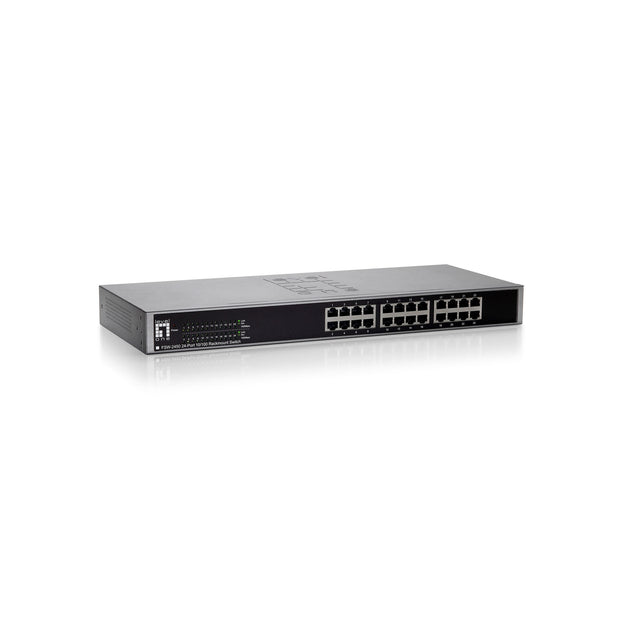

24 Port 10/100 Fast Ethernet Switch, Black

The 71X5-00224 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.

The 71X5-00224 is a wire-speed, nonblocking 24 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 4.8Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX. The 24-port Fast Ethernet Switch utilizes packet store-and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.

The 71X5-00224 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.

The 71X5-00224 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 24 port Fast Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.

• Provides 24 Fast Ethernet port connections
• Supports a total back plane of up to 4.8Gbps
• Wire-speed and non-blocking forwarding rate
• Support IEEE 802.1P QoS (WRR 8:1)
• Supports Auto-negotiation on all ports
• Store-and-forward switching for error-free transmission
• Supports full-duplex IEEE802.3x flow control
• Accessory kit for mounting into a 19"�server rack
• Internal power supply
• Power save up to 14% compare to Non Green Switch with similiar funtions

• Warranty: 2 years
• Connection: 24 Ethernet Ports
• Weight: 6.51 lbs
