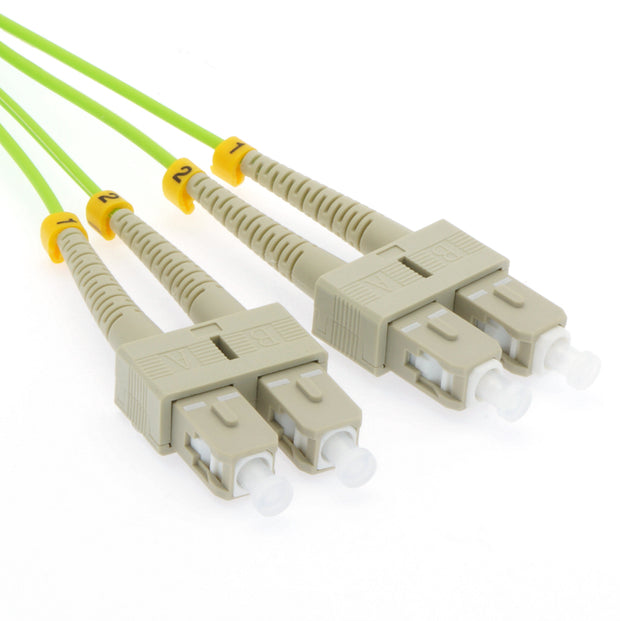

3m SC/UPC-SC/UPC OM5 Multimode Duplex Green Fiber Optic Patch Cable

Regular price $15.75
Features:
  • Used to connect patch panels and/or network devices that utilize duplex SC to SC style connectors and require OM5 50/125 multimode cabling.
  • 100% tested
  • Test report included in each cable
  • Lime green jacket color
  • 1/2 mark ring
Specifications:
  • Connector Type: SC-SC Multimode
  • Polishing: UPC
  • Return Loss: 55 dB
  • Insertion Loss: 0.30 dB
  • Ferrule Material: Ceramic (zirconia)
  • Ferrule Diameter: 1.25 mm / 2.5 mm
  • Cabled Optical Fiber: OM5
  • Nominal Diameter Core: 50/125 µm
  • Jacket Material: OFNR/LSZH
  • Operation Temperature Range: -20°C +70°C
