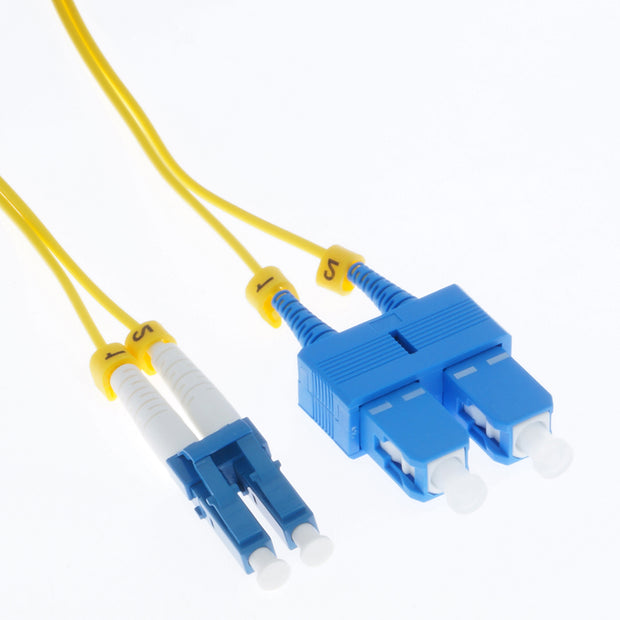

5m LC/UPC-SC/UPC Singlemode Duplex 1.6mm Slim Fiber Optic Patch Cable with Short Boot

Regular price $15.75

Used to connect patch panels and/or network devices that utilize LC to SC style connectors and require 9/125 Single mode cabling BIF in the FTTH networks run by Telecom operators.

  • Short boots and slim cable diameter for tight space installation.
  • Bend-insentive fiber (G657A1)
  • Connectors utilize UPC polish
Specifications:
  • Connector Type: LC-SC Duplex
  • Polishing: UPC
  • Return Loss: 55dB
  • Insertion Loss: 0.30 dB
  • Ferrule Material: Ceramic (zirconia)
  • Ferrule Diameter: 1.25 mm / 2.5 mm
  • Body type: Dupplex
  • Nominal Diameter Core: 9/125 µm
  • OD: 1.6mm
  • Jacket Material: OFNR/LSZH
  • Operation Temperature Range: -20°C +70°C
