Armored 6 Strand Indoor/Outdoor Fiber Optic Distribution Cable, OM1 62.5/125 Multimode, Corning Optical Fiber, Riser Rated, Black, Spool, 500 foot
Armored 6 Strand Indoor/Outdoor Fiber Optic Distribution Cable, OM1 62.5/125 Multimode, Corning Optical Fiber, Riser Rated, Black, Spool, 500 foot

Armored 6 Strand Indoor/Outdoor Fiber Optic Distribution Cable, OM1 62.5/125 Multimode, Corning Optical Fiber, Riser Rated, Black, Spool, 500 foot

Regular price $537.87

Our Steel Armored Fiber Optic Cable features Rodent Resistant Spiral Steel Armor, 6 strands of OM1 62.5/125um Multimode Corning® InfiniCor® 300 core, and an black riser rated jacket.

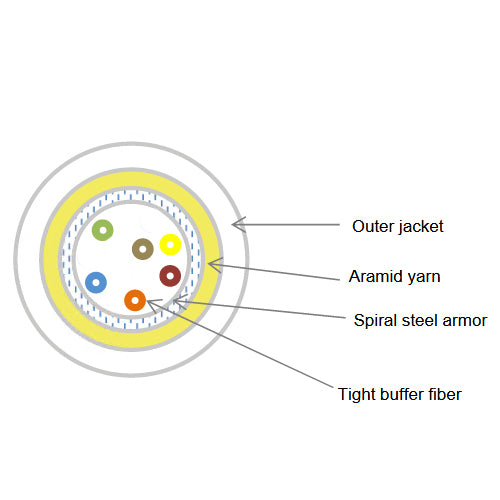

This armored cable consists of 0.9mm tight buffered fiber surrounded by an Aramid yarn (similar to Kevlar®) strength member. The core is protected by a spiral-wrapped steel tube that offers an easy installation, rodent protection, and high crush, pressure, and tension resistance during installation and deployment. Outdoor rated cabling is primarily used for outside plant (OSP) applications typically bridging into the build/plant, it can be Installed in walls, between floors, under data center floors, and of course on outside walls.

Common Applications include Fiber To The Home (FTTH) access networks, Telecommunication Networks, CCTV Networks, Data communications Networks, Local Area Networks, and more.

Details
  • Fiber Count: 6 cores
  • Fiber Type: Corning® InfiniCor® 300
  • Cable Type: 900um Tight Buffered
  • Buffer Material: PVC
  • Strength Member: Aramid Yarn
  • Armor: Spiral Steel
  • Cable Color: Black
  • Jacket Rating: Riser Rated
Optical Fiber Characteristics
  • Core Size: 62.5um
  • Wavelength: 850nm / 1300nm
  • Max. Attenuation: 3.5 / 1.5 dB/km
  • Bandwidth(EMB): 850nm: 200MHz
  • Cladding diameter(um): 125±2.0
  • Core-Clad Concentricity: ?1.5 um
  • Cladding non-circularity(%): ?0.1.0
  • Coating-Cladding Concentricity(um): ?12.0
  • Coating diameter(um): 242±5
  • Core diameter(um): 62.5±2.5um
  • Effective Group Index of Refraction(Neff)
    • 850nm:1.496
    • 1300nm:1.491
  • Fatigue Resistance Parameter(Nd): 20
  • Temperature Dependence: -60~85°C
  • Temperature-humidity cycling: -10 to +85°C,98% R.H.
Specification
  • Warranty: 5 years
  • Color: Black
  • End 1: Bare end
  • End 2: Bare end
  • Length: 500 feet
  • Weight: 23.00 lbs
