Regular price
$49.33
We use 50 micron gold plating on all our patch cable plugs, RJ45 keystone jacks and patch panel RJ45 jacks.
UL approved

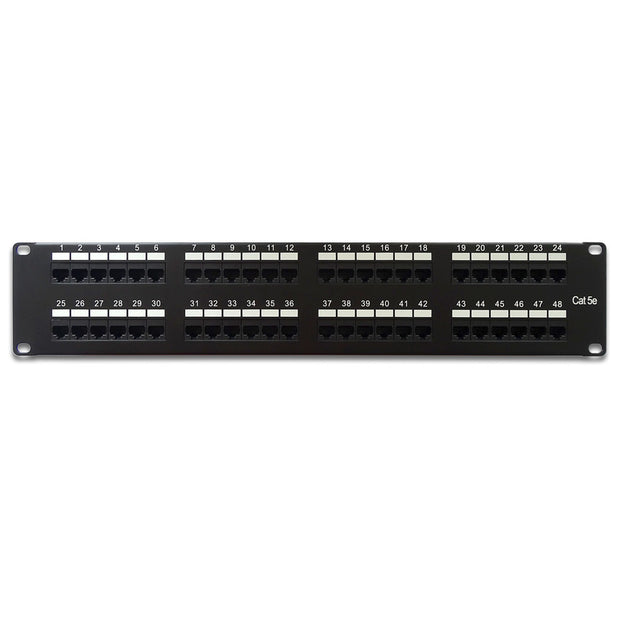

19 inch 2U rackmount
Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification

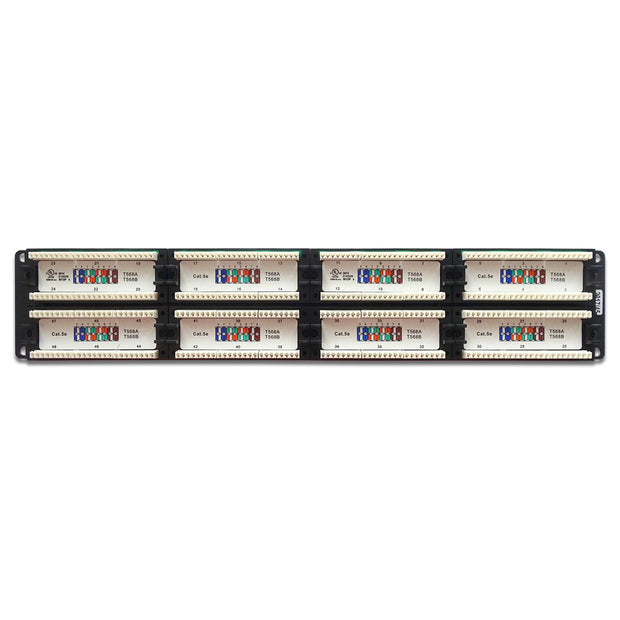

Support T568A & B wiring
Wire diameter : 22 ~ 26AWG
Insulation diameter range : 0.70 to 1.40mm
Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.
IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.
Safty : UL1863
Flamability : UL 94 VO
Operating temperature : -40 to +70 dgree Celsius
Weight : 1.55LBS
Mounting Hinge: 102216
25 years warranty
