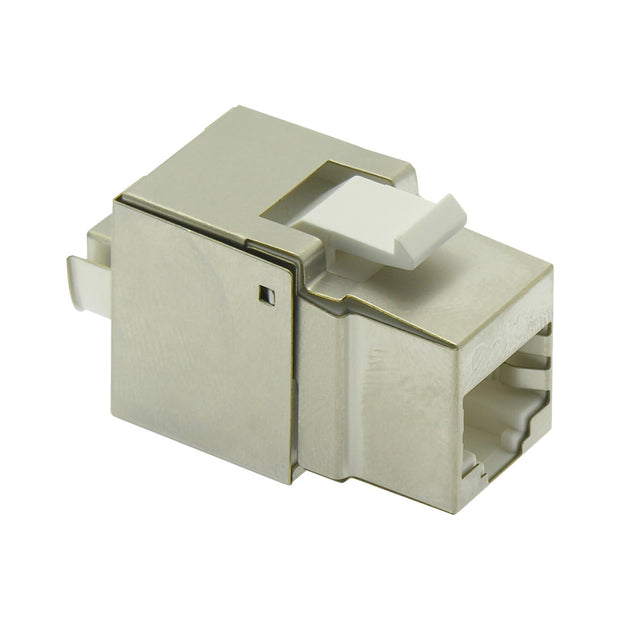

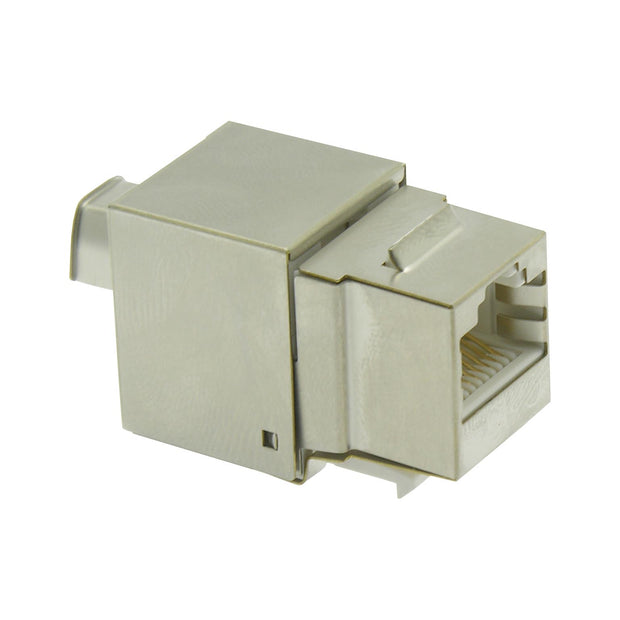

Cat.5E RJ45 110 Type Shielded Keystone Jack
Cat.5E RJ45 110 Type Shielded Keystone Jack
Cat.5E RJ45 110 Type Shielded Keystone Jack

Cat.5E RJ45 110 Type Shielded Keystone Jack

Regular price $15.75

Cat.5E RJ-45 keystone jack is 8-position 8-conductor (8P8C) and designed for computer networking. It is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 5e performance standards.

BestLink Netware RJ45 keystone jack uses 50 micron gold plated contact pin.

  • CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
  • PCB technology provides maximum performance and superior signal quality
  • Terminate with 110 punch down tool
  • 4 x 4 termination layout
  • Includes an integrated TIA-568A/B color wiring diagram
  • Backwards compatible to all lower rated category components
  • Compatible with all BestLink Netware wallplates, surface mount boxes, and blank patch panels
  • Works with all Bestlink Netware Ethernet patch cables

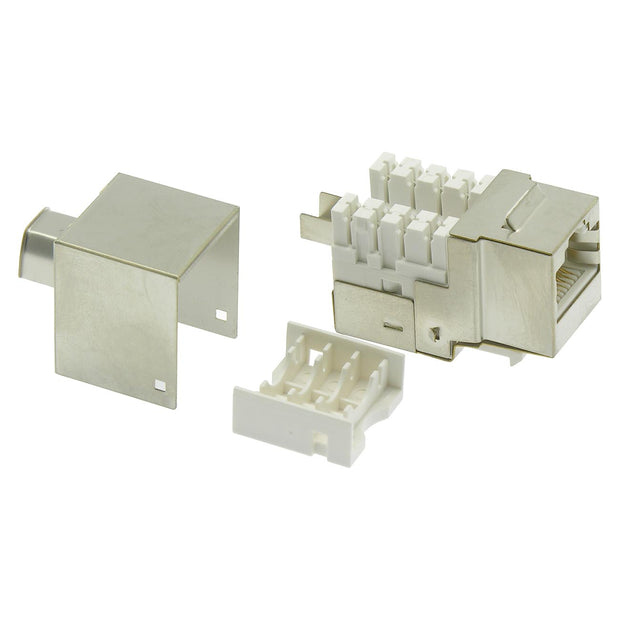

  • Termination cap included
  • Individually packaged
  • UL listed

Features

  • Material Flame Rating : UL 94V-0
  • Aplicable Wire Gauge : 22AWG ~ 26AWG Solid and Stranded Wire
  • Jack Contacts : 50 Micron Gold Plating, Operating Life: 750 Insertions
  • IDC Contacts : 100 Micron Nickel Plating, Operating Life: 250 Reterminations
  • Wiring : T568A& B Compatible
  • Compatibility : Category 5 and 3
  • Safety Compliant : UL 1863, UL/cUL listed
  • Shield Cover (Shield Type) : 50~60Micron Nickel Plating over Phosophor Blonze
  • Applications : 10Base-T, 100Base-TX Fast Ethernet
