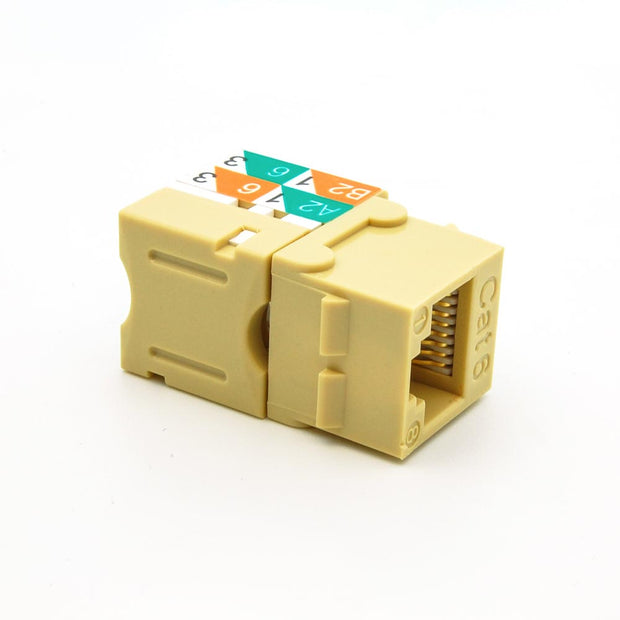

Bestlink Netware's Cat.6 RJ45 keystone jacks are 8-position 8-conductor (8P8C) and are engineered to provide superior performance and reliability for data networks requiring maximum speed and bandwidth, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards.
Features:
PCB technology provides maximum performance and superior signal quality.
Terminates easily with Bestlink Netware's 110 punch down tool.
4 x 4 Termination Layout

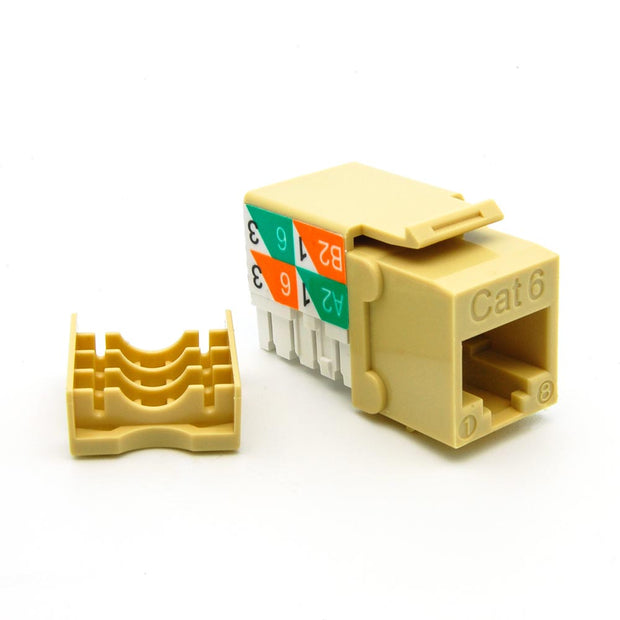

Includes an integrated TIA-568A/B color wiring diagram.
Backwards compatible to all lower-rated category components.
Works with all Bestlink Netware Ethernet patch cables.

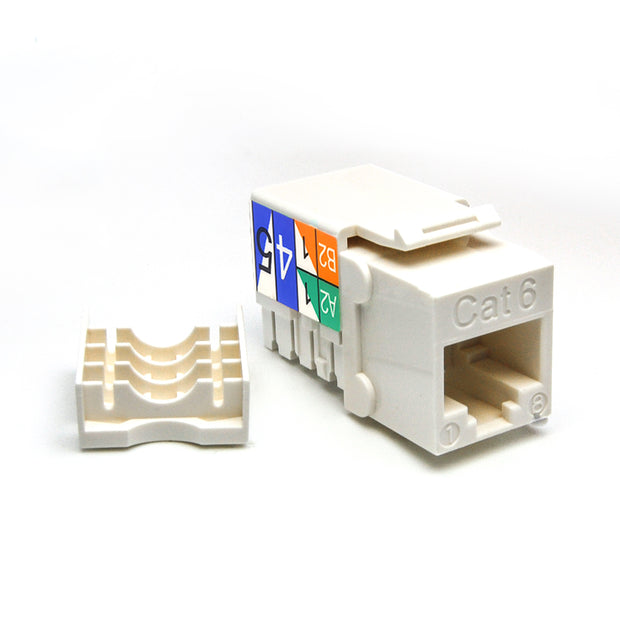

Available in 9 colors: Black, Blue, Gray, Green, Ivory, Orange, Red, White, Yellow

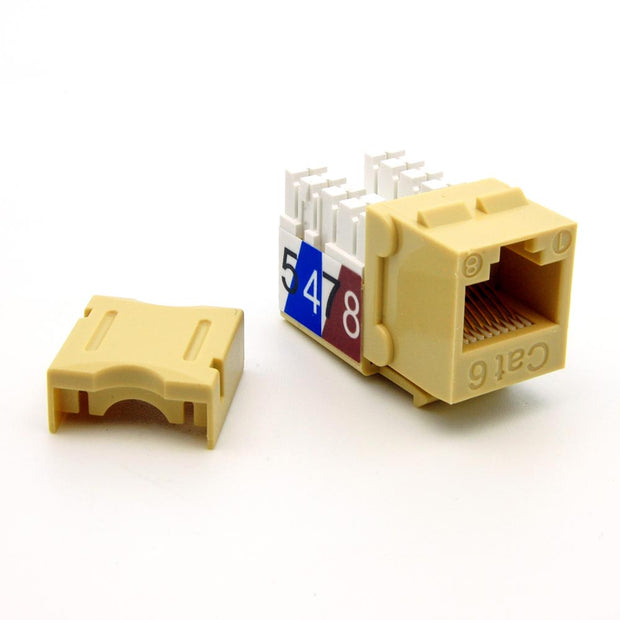

Termination Cap Included
Individually Packaged

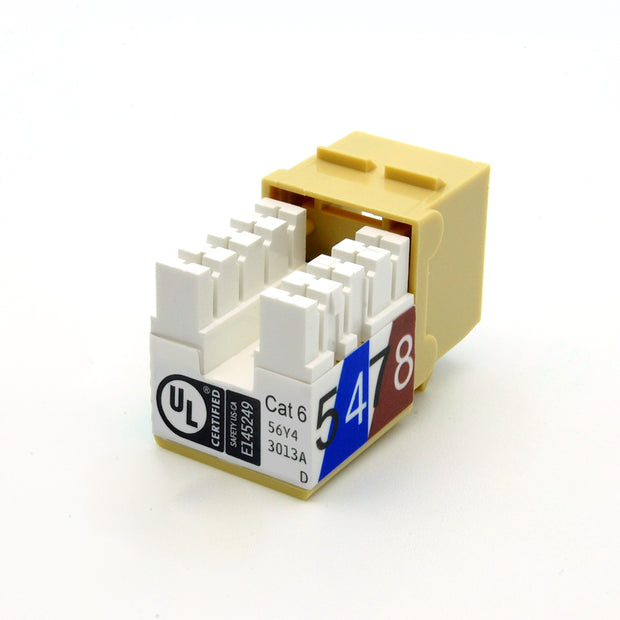

UL listed
Compatible with all Bestlink Netware wallplates, surface mount boxes, and blank patch panels.

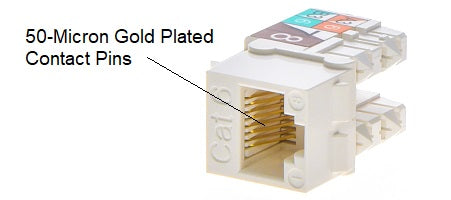

Bestlink Netware RJ45 Keystone Jacks use 50-micron gold plated contact pins that are non-corrosive and ensure long-term connectivity. Specifications:
Material Flame Rating: UL 94V-0
Applicable Wire Gauge: 22AWG ~ 26AWG Solid and Stranded Wire
Jack Contacts: 50-Micron Gold Plating
Operating Life: 750 Insertions
IDC Contacts: 100 Micron Nickel Plating
Operating Life: 250 Reterminations
Wiring: T568A& B Compatible
Compatibility: Category 6, 5 & 3
Safety Compliance: UL 1863, UL/cUL listed
Shield Type: 50~60-Micron Nickel Plating over Phosphor Bronze
