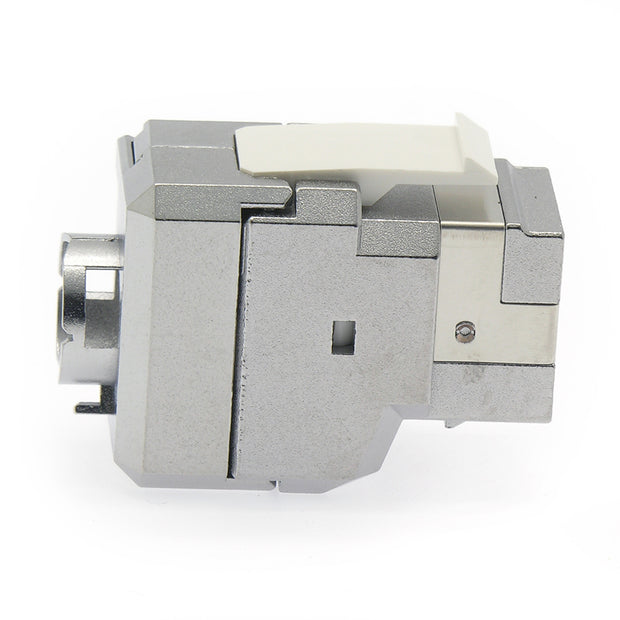

Cat.6A 180 Degrees Shielded RJ45 Keystone Jack

This slim type Cat.6A Shielded Keystone Jack has zinc die-cast housing for maximum shield protection and is designed for our Cat.6A blank patch panel. It is also compatible with all our wall plate and patch cables.

• CAT 6A rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
• 180 degree puch down type
• 4 x 4 termination layout
• Includes an integrated TIA-568A/B color wiring diagram
• Compatible with all BestLink Netware wallplates, surface mount boxes, and blank patch panels
• Works with all Bestlink Netware Ethernet patch cables
• Termination cap included
• Individually packaged
• UL listed

• Material Flame Rating: UL 94V-0
• Aplicable Wire Gauge: 23AWG ~ 26AWG Solid and Stranded Wire
• Jack Contacts: 50 Micron Gold Plating, Operating Life: 750 Insertions
• IDC Contacts: 100 Micron Nickel Plating, Operating Life: 250 Reterminations
• Wiring: T568A& B Compatible
• Compatibility: Category 6A, 6, 5 and 3
• Safety Compliant: UL 1863, UL/cUL listed
• Shield Cover (Shield Type): 50~60Micron Nickel Plating over Die-Cast Zinc
• Applications: 10Base-T/100Base-TX Fast Ethernet/1000Base-T
