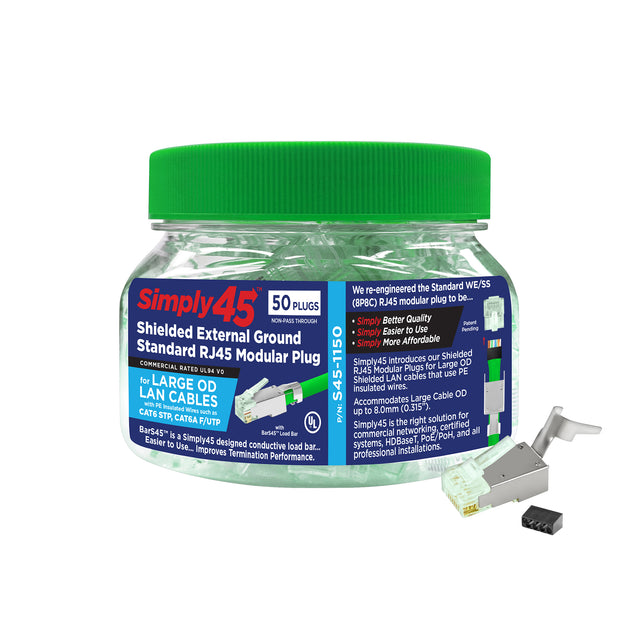

Simply45 Shielded Cat6 RJ45 Crimp Connectors, external ground, Solid/Stranded 23AWG, Green Tint, Hi/Lo Stagger, Bar45™, Jar 50 pieces
Simply45 Shielded Cat6 RJ45 Crimp Connectors, external ground, Solid/Stranded 23AWG, Green Tint, Hi/Lo Stagger, Bar45™, Jar 50 pieces
Simply45 Shielded Cat6 RJ45 Crimp Connectors, external ground, Solid/Stranded 23AWG, Green Tint, Hi/Lo Stagger, Bar45™, Jar 50 pieces
Simply45 Shielded Cat6 RJ45 Crimp Connectors, external ground, Solid/Stranded 23AWG, Green Tint, Hi/Lo Stagger, Bar45™, Jar 50 pieces
Simply45 Shielded Cat6 RJ45 Crimp Connectors, external ground, Solid/Stranded 23AWG, Green Tint, Hi/Lo Stagger, Bar45™, Jar 50 pieces
Simply45 Shielded Cat6 RJ45 Crimp Connectors, external ground, Solid/Stranded 23AWG, Green Tint, Hi/Lo Stagger, Bar45™, Jar 50 pieces
Simply45 Shielded Cat6 RJ45 Crimp Connectors, external ground, Solid/Stranded 23AWG, Green Tint, Hi/Lo Stagger, Bar45™, Jar 50 pieces

Simply45 Shielded Cat6 RJ45 Crimp Connectors, external ground, Solid/Stranded 23AWG, Green Tint, Hi/Lo Stagger, Bar45™, Jar 50 pieces

Regular price $124.26

Simply45 RJ45 ends for Cat6 networking are used for crimping and terminating Gigabit Ethernet cables. These 8P8C connectors can be used for solid or stranded cable applications on internet and phone networks. Simply45 Cat6 crimp connectors have gold-plated contacts that give you a solid, corrosion-free connection for life. Ordering RJ45 connectors in bulk from CableWholesale means you will have enough to set up or modify your infrastructure. We have a full lifetime warranty on these cat6 tips with full support from our knowledgeable team.

The green tint of the RJ45 plug helps you easily identify this as a cat6 mod plug. The wide mouth jar allows even the largest hand to easily remove plugs to get the termination done quickly and easily. This 2-piece STP rj45 comes with the Bar45 Hi/Lo stagger load bar The Bar45 load bar improves performance by reducing the effects of crosstalk inside the rj45 plug. Bar45 limits both near-end crosstalk(NEXT) and far-end crosstalk(FEXT). Bar45 reduces the length of untwisted wires inside the plug.

Features:
  • Category/Cable Type: Cat6/STP
  • Conductor AWG/Range: 23AWG/1.10-1.20mm
  • Max OD: 8.0mm
  • 3 Pin Contact Design
  • UL94V-0, Commercial 'Fire' Rated
  • UL94V-0 Application: CMP, LSZH, and CMR
  • Meets Requirements for PoE/PoE+. HDBaseT Approved
  • USA Designed. TAA Compliant
Specifications:
  • Warranty: Lifetime
  • Color: Green
  • Connection: Cat5e Male Plug
  • Weight: 0.48 lbs
