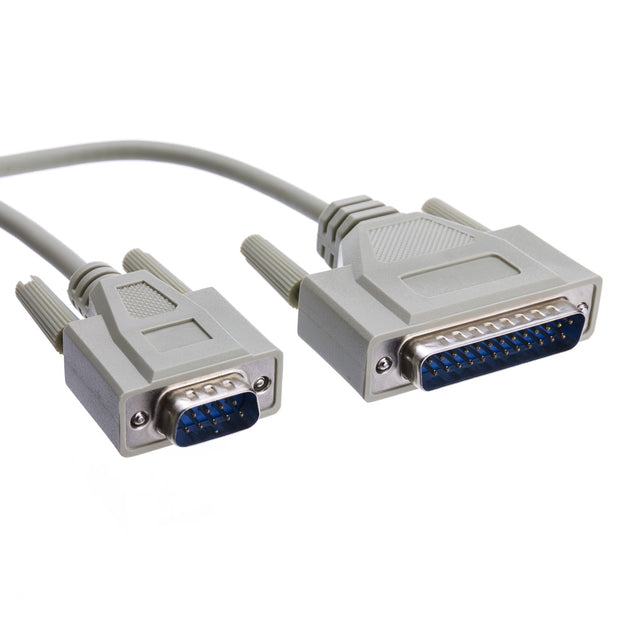

Serial Cable, DB9 Male to DB25 Male, UL rated, RS232, 9 Conductor, 6 foot

Serial Cable, DB9 Male to DB25 Male, UL rated, RS232, 9 Conductor, 6 foot

$15.75

Our 6 foot high quality serial cable features molded connectors and gold plated contacts for superior corrosion resistance ensuring a solid connection for the life of the cable. The connectors are DB9 male to DB25 male supporting 9 conductors. This cable is ideal for connecting 25 pin serial devices to laptops, computers and expansion/interface cards that have a 9 pin serial port. This male to male serial cable is solidly constructed, UL rated and RoHS Compliant.

Pinouts:

1-8
2-3
3-2
4-20
5-7
6-6
7-4
8-5
9-22
G-G

Specification

Warranty: Lifetime
Color: Beige
Converts: Converts back and forth between DB9 Male Plug and DB25 Male Plug
End 1: DB9 Male Plug
End 2: DB25 Male Plug
Length: 6 feet
Wire Gauge: 28 AWG
